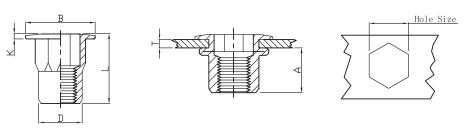

螺纹 |
编号 |
T(GRIP RANGE) Min Max |
A |
Hole Size |
D |
B |
K |
L |
M4 |
FH-IHB-UK-0420 |
0.5-2.0 |
6.5 |
6.4 |
6.25 |
9.5 |
0.6 |
10.5 |
M5 |
FH-IHB-UK-0525 |
0.5-2.5 |
7.5 |
7.2 |
7.05 |
10.0 |
0.8 |
12.0 |
M6 |
FH-IHB-UK-0630 |
1.0-3.0 |
9.2 |
9.6 |
9.4* |
12.95* |
1.0* |
15.5* |
M8 |
FH IHB UK 0835 |
1.0-3 5 |
10.5 |
10.6 |
10 45* |
16.5* |
1.15* |
18.5* |
M10 |
FH-IHB-UK-1040 |
1.0-4.0 |
12.3 |
12.8 |
12.65 |
17.0 |
1.2 |
20.5 |
